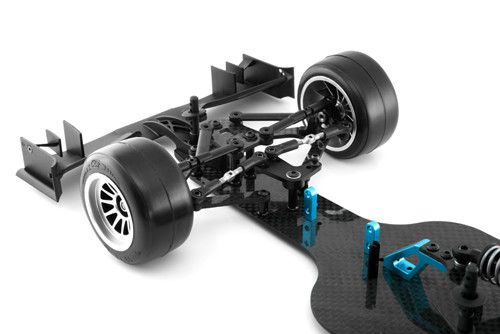

Velox F1 1:10 2018 Kit (incl. ETS legal wings and body)

€334.53

Velox F1 2018:

The 2018 version of the Velox F1 is equipped with a new battery mount set.

This utilises a new carbon fibre battery brace and upper plate that accommodates a rubber O-ring to secure the battery pack while also shifting the pack about 2.6mm towards the rear for increased traction and more implified handling characteristics.

To further improve the Velox Revolutionary Shock System the latest evolution of floating pistons is also included in the kit from now on.

With the help of an additional o-ring the new floating piston completely prevents any possible tilt of the piston inside the shock absorber resulting in a 100% leak-free and easy to adjust operation.

More great developments in the 2018 Version of the Velox F1 are the updated main shaft and right rear wheele hub. Both now are coming in a optimized shape for perfect fitting and more contact area of the diff preassure plates resulting in a much smoother running of the ball differential.

Furthermore the larger diameter reduces the possibility of fluff or dirt coming into the differential increasing its durability

The 2018 version of the Velox F1 is equipped with a new battery mount set.

This utilises a new carbon fibre battery brace and upper plate that accommodates a rubber O-ring to secure the battery pack while also shifting the pack about 2.6mm towards the rear for increased traction and more implified handling characteristics.

To further improve the Velox Revolutionary Shock System the latest evolution of floating pistons is also included in the kit from now on.

With the help of an additional o-ring the new floating piston completely prevents any possible tilt of the piston inside the shock absorber resulting in a 100% leak-free and easy to adjust operation.

More great developments in the 2018 Version of the Velox F1 are the updated main shaft and right rear wheele hub. Both now are coming in a optimized shape for perfect fitting and more contact area of the diff preassure plates resulting in a much smoother running of the ball differential.

Furthermore the larger diameter reduces the possibility of fluff or dirt coming into the differential increasing its durability

Coming in a very clean and symetrical design, the Velox F1 is an eyecatcher which is remarkably different compared to most of the cars on the market.

The biggest optical difference is a single center post for fixing the center shock and the body mount plate which results in a lot of space for the electronics. A Shepherd VRS absorber with a floating piston instead of a membran and two high quality aluminium tube dampers take care of the damping duties to keep the wheels on the ground and to guarantee maximum traction under all track conditions.

An extension for the center mount allows the use of a standard or LCG 2s shorty lipo packs which can be installed in a front or rear transversal position to finetune the weight balance.

The front end features lightweight lower carbon wishbones and aerodynamic moulded upper wishbones with r/l turnbuckles to finetune the camber.

The upper whishbones are fixed on a carbon upper wishbone support. Different moulded inserts are used to adjust the caster.

Multiple different mounting positions on the steering lever and the steering knuckles allow various ackermann settings. With different shims it's possible to realize several roll-center and/or ride height settings.

The 100% symetrical chassisplate is equipped with several holes for the use of standard servos as well as smaller 35mm servos. The 35mm Servos can be mounted in a front or rear position.

The rear powerpod is equipped with a 18-ball differential including laser-cut diff pressure plates for best performance. The differential is adjustable from the outside without disassembly and equipped with a thrust bearing to guarantee a smooth operation.

Furthermore two different types of motor mounts are included in the kit. They allow two different height levels for a perfect motor positioning. The rear ride height can be adjusted with shims and the excentric inserts allow a short and a long wheelbase setup.

Included in the kit are adjustable ETS-legal front and rear wings as well as a Shepherd Formula lexan body.

The Shepherd Velox F1 is available in two different color styles - traditional Shepherd blue and also as a special "Black Edition" -  from now on.

More Information
SKU SMR_100001-18
manufacturer partnumber 100001-18
Brand Shepherd Micro Racing
Scale 1:10
Onroad / Offroad On-road
Build level Competition
