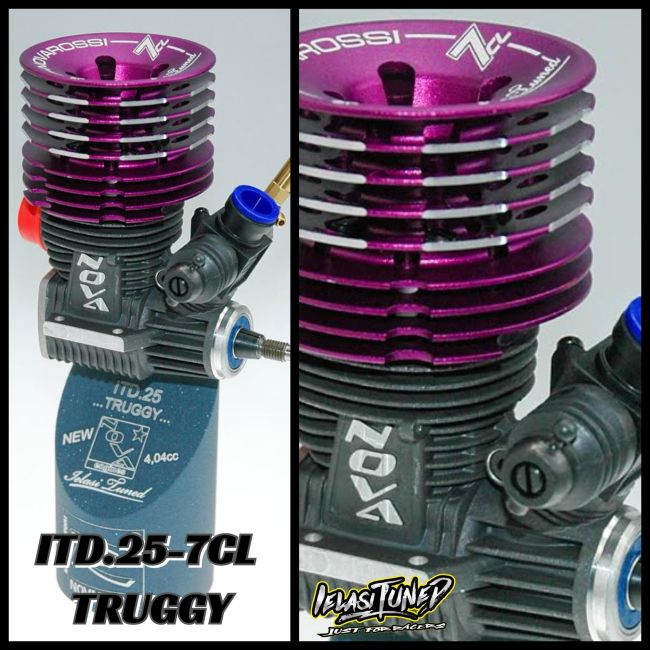

IELASITUNED .25 TRUGGY 7 Port Steel Standard
€292.58
Out of stock
Cooling head:
The cooling heads of the ITD.25-7CL TRUGGY engines are made lighter by making aditional holes in the cooling fins. This reduces the overall mass of the engine.
Sleeve:
The sleeve has 7 transfer ports and an exhaust with booster ports. The special shape and positioning of the ports, covered by a patent, improve the internal fluid-dynamics to obtain the maximum possible performance.
Crankshaft:
The Turbo SG crankshaft is made from high quality steel.
Rear cover:
The rear cover presents a round shape to optimize the filling and reducing the dead spaces. the steel plate is to reduce friction and to expand the lifespan of the conrod.
Carburetor:
This carburettor is made from plastic and have a sliding throttle valve. (reverse type)
TECH SPECS:
DISPLACEMENT: 4.04 cc
SLEEVE 7 PORTS LONG STROKE
CRANCSHAFT 14mm TURBO - TUNED
NEW CONROD
NEW COOLING HEAD - IELASI TUNED 7 TRUGGY
FRONT BEARING - STEEL
REAR BEARING - STEEL
WEIGHT: 375 g
Bore x Stroke: 17,10x17,60mm
R.P.M. (max power) 37.500 RPM (7 ports)
Cooling head:
The cooling heads of the ITD.25-7CL TRUGGY engines are made lighter by making aditional holes in the cooling fins. This reduces the overall mass of the engine.
Sleeve:
The sleeve has 7 transfer ports and an exhaust with booster ports. The special shape and positioning of the ports, covered by a patent, improve the internal fluid-dynamics to obtain the maximum possible performance.
Crankshaft:
The Turbo SG crankshaft is made from high quality steel.
Rear cover:
The rear cover presents a round shape to optimize the filling and reducing the dead spaces. the steel plate is to reduce friction and to expand the lifespan of the conrod.
Carburetor:
This carburettor is made from plastic and have a sliding throttle valve. (reverse type)
TECH SPECS:
DISPLACEMENT: 4.04 cc
SLEEVE 7 PORTS LONG STROKE
CRANCSHAFT 14mm TURBO - TUNED
NEW CONROD
NEW COOLING HEAD - IELASI TUNED 7 TRUGGY
FRONT BEARING - STEEL
REAR BEARING - STEEL
WEIGHT: 375 g
Bore x Stroke: 17,10x17,60mm
R.P.M. (max power) 37.500 RPM (7 ports)
| SKU | ITD_25-7 - TRUGGY |
|---|---|
| Brand | Ielasi Tuned |
| Onroad / Offroad | Off-road |
